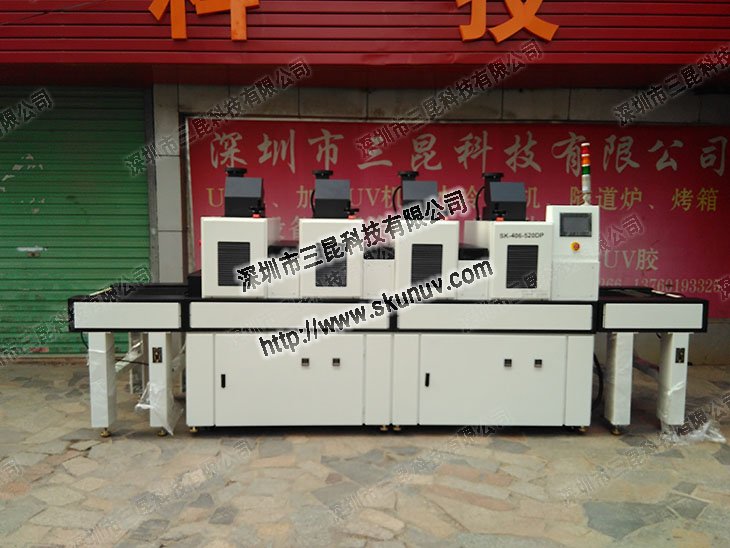

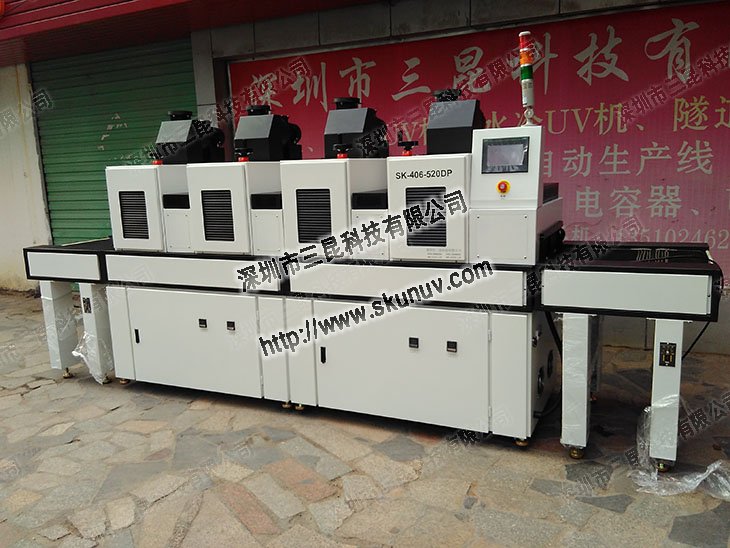

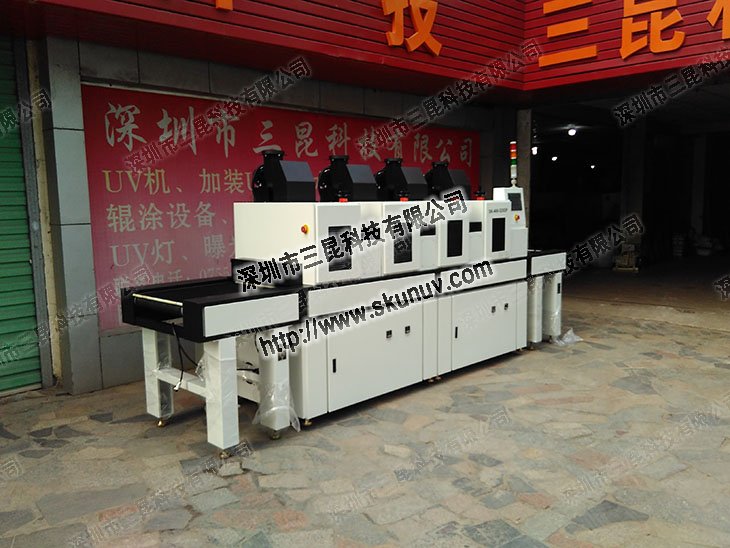

【uv紫外光固化机】四灯节能多功能卤素灯uv固化机SK-406-520DP

品牌：SunKun(三昆)

型号：SK-406-520DP

订购：不限数量

价格：面议

⒈订购热线：13823369867(李先生)
1753480168
⒉业务咨询：13913507139(黄永贵)
2851085006



⒈市场部：13510246266(黄总经理)
289604232

1、UV灯功率:6.0kw*4支(卤素灯)
2、UV灯总长:620mm、弧长:520mm
3、UV波段主波峰:365nm、385nm
4、UV灯累时器配置

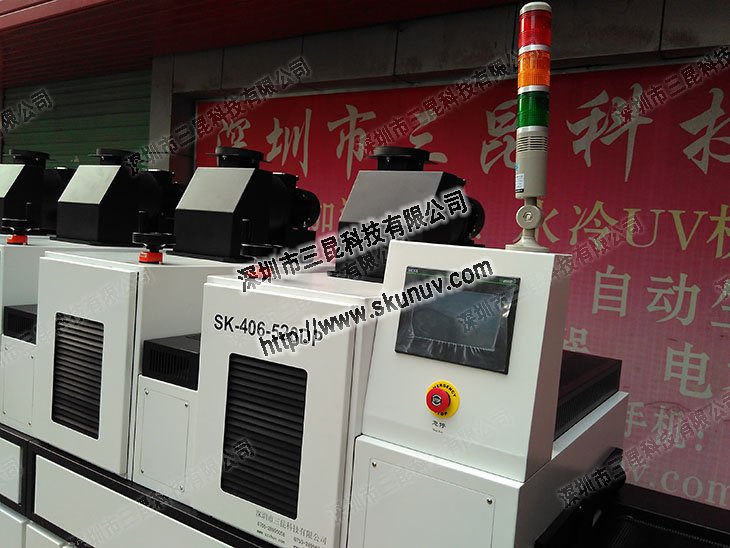

5、人机界面触摸控制
6、强弱光强调节:20%~100%(无级调节)
7、铝板灯箱安装光学反射器和光学滤光镜片

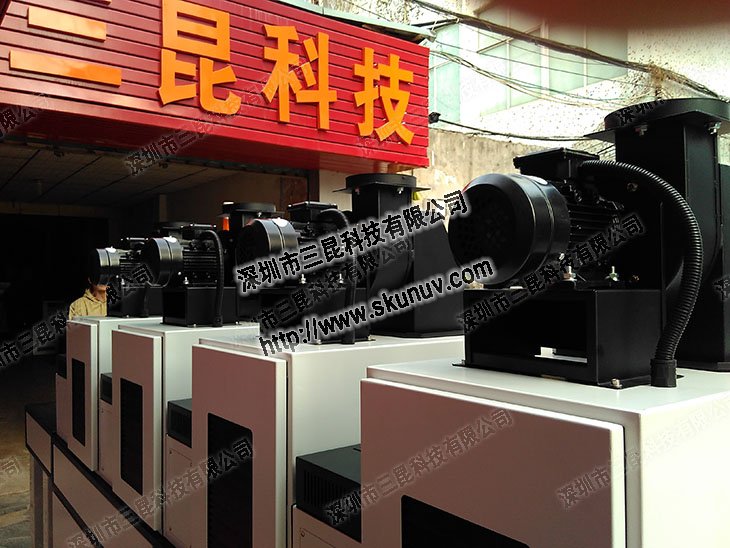

8、采用上、下排风系统

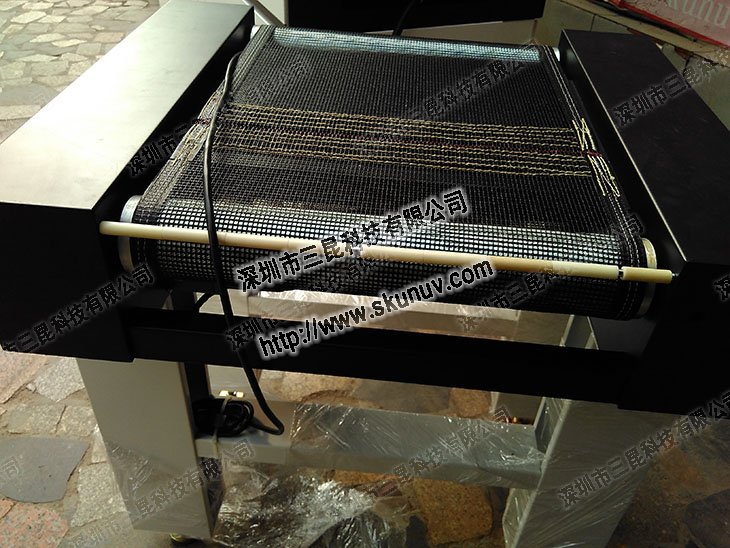

9、输送材料:特氟龙网带
10、输送宽度:520mm
11、输送速度:0.3~5m/min
12、入口高度:100mm
13、电源:380vac50HZ

Technical Parameters:
1, UV lamp power: 6.0kw * 4 (halogen)
2, the total length of the UV lamp: 620mm, arc length: 520mm
3, UV band main peak: 365nm, 385nm
4, UV light timer configuration
5, man-machine interface touch control
6, strong and weak light intensity adjustment: 20% ~ 100% (stepless adjustment)
7, aluminum plate light box installation optical reflector and optical filter lens
8, using the upper and lower exhaust system
9, conveying materials: Teflon mesh belt
10, conveying width: 520mm
11, conveying speed: 0.3~5m/min
12, the entrance height: 100mm
13, power: 380vac50HZ

主要用途：
uv紫外光固化机适用于光电行业 集成电路芯片 玻璃板晶片 裸片密封 电子材料组装 补强用胶粘剂 UV固化胶粘接 引线粘接 表面涂覆 光学胶粘接 微电子装配粘合 IC保护密封等UV光固化，是一款箱式UV固化设备。为大批量生产或试验室设计，它的多功能性可以适用各种不同的紫外固化应用,固化小元件非常理想。系统包含电源箱、可以移动的光源，在固化操作中,可以当作手提固化灯，固化箱等三部分。因为他的简单设计，非常的好用和可靠，基本不需要任何的培训和设置时间，这个系统对那些经常需要移动的固化应用非常理想。手提式紫外面光源，适用于对紫外涂层、胶粘剂和密封材料的固化以及荧光激发。想了解更多相关信息，可以咨询深圳市三昆科技有限公司，谢谢！

The main purpose:
UV UV curing machine is suitable for optoelectronic industry integrated circuit chip glass plate wafer die sealing electronic material assembly reinforcing adhesive UV curing adhesive bonding wire bonding surface coating optical adhesive bonding microelectronic assembly bonding IC protection sealing UV Light curing is a box UV curing device. Designed for high volume production or laboratory, its versatility can be applied to a wide range of UV curing applications, making it ideal for curing small components. The system includes a power box and a light source that can be moved. In the curing operation, it can be used as a portable curing lamp and a curing box. Because of his simple design, it is very easy to use and reliable, and basically does not require any training and setup time, this system is ideal for curing applications that often need to be moved. Portable UV surface light source for curing UV coatings, adhesives and sealing materials as well as fluorescent excitation. For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!
